AF7330M, AF7325M Datasheet - AFSEMI

AF7330M 250mA Low Power LDO

AF7330M Features

* Low power consumption

* Low voltage drop

* Low temperature coefficient

* Ultra low quiescent current: 2μA(typ.)

* High input voltage (up to 15V)

* Maximum output current: 250mA

* Output voltage accuracy: tolerance ±2%

* TO92, SOT89 ,SOT23-3 and SOT23 package Appli

AF7325M-AFSEMI.pdf

This datasheet PDF includes multiple part numbers: AF7330M, AF7325M. Please refer to the document for exact specifications by model.

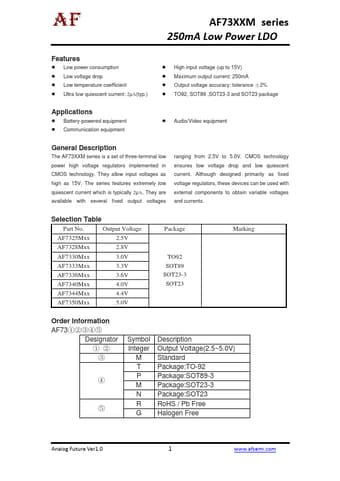

AF7330M Datasheet Preview Page 2 AF7330M Datasheet Preview Page 3

Datasheet Details

Part number:

AF7330M, AF7325M

Manufacturer:

AFSEMI

File Size:

1.39 MB

Description:

250ma low power ldo.

Note:

This datasheet PDF includes multiple part numbers: AF7330M, AF7325M.
Please refer to the document for exact specifications by model.
