AHA3411 Datasheet - AHA

AHA3411 - 33 MBYTES/SEC SIMULTANEOUS COMPRESSOR/DECOMPRESSOR IC

The coprocessor device has three external high speed synchronous data ports each capable of transferring once every 33 MHz clock.

These are a 32-bit bidirectional data port, an 8-bit Video Input Data (VID) port and a Video Output Data (VOD) port.

The data port is capable of transferring up to 132 MB

www.DataSheet4U.com comtech aha corporation PRODUCT BRIEF AHA3411 StarLite 33 MBYTES/SEC SIMULTANEOUS COMPRESSOR/DECOMPRESSOR IC AHA3411 is a high speed lossless compression coprocessor IC for the hardcopy systems on many standard platforms, including the PCI Bus.

The device is targeted for over 30 ppm printers or 50 ppm copiers at 1200 dpi.

Simultaneous compression and decompression, flexible interfaces and advanced banding support make this a unique solution for high performance Raster

AHA3411 Features

* PERFORMANCE:

* 33 MBytes/sec compression/decompression rates

* 132 MBytes/sec burst data rate over a 32-bit data bus

* 33 MBytes/sec synchronous optional 8-bit video in and video out ports

* Simultaneous compression and decompression at full bandwidth

* Avera

AHA3411_AHA.pdf

Preview of AHA3411 PDF

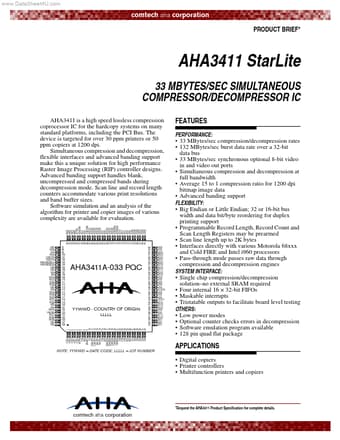

AHA3411 Datasheet Preview Page 2 AHA3411 Datasheet Preview Page 3

Datasheet Details

Part number:

AHA3411

Manufacturer:

AHA

File Size:

223.90 KB

Description:

33 mbytes/sec simultaneous compressor/decompressor ic.
