AHA3422

16 MBYTES/SEC LOSSLESS DECOMPRESSOR IC

AHA3422 Features

* PERFORMANCE:

* 16 MBytes/sec data rate

* 132 MBytes/sec burst data rate over a 32-bit data bus

* 33 MBytes/sec burst rate, 16 MBytes/sec sustained synchronous 8-bit video out port

* Average 15 to 1 compression ratio for 1200 dpi bitmap image data

* Advanced b

AHA3422 General Description

The coprocessor device has two external high speed synchronous data ports each capable of transferring once every 33 MHz clock. These are a 32-bit bidirectional data port and an 8-bit Video Output Data (VOD) port. The data port is capable of transferring up to 132 MBytes/sec. The VOD is capable of u.

AHA3422 Datasheet (218.36 KB)

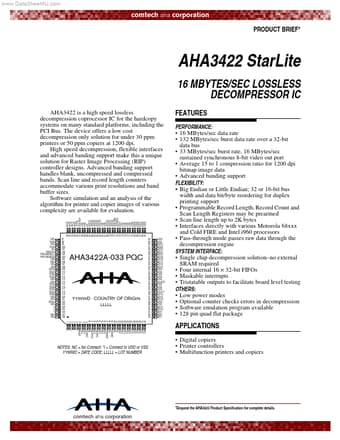

Preview of AHA3422 PDF

Datasheet Details

Part number:

AHA3422

Manufacturer:

AHA

File Size:

218.36 KB

Description:

16 mbytes/sec lossless decompressor ic.
www.DataSheet4U.com comtech aha corporation PRODUCT BRIEF
* AHA3422 StarLite 16 MBYTES/SEC LOSSLESS DECOMPRESSOR IC AHA3422 is a high speed lossl.
