AK9232

Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter

AK9232 Features

*  Simultaneous Sampling 18/16/14-bit ZDS A/D Converter  Sampling Rate: 1.1MSPS  Differential Inputs  S/N: 88 dBFS(Typ.) at 20kHz Input (AK9232) 87 dBFS(Typ.) at 20kHz Input (AK9233) 84 dBFS(Typ.) at 20kHz Input (AK9234)  18bit No Missing Code, INL: ±2LSB (Typ.) @Vin=-6dBFS (AK9232) 16bi

AK9232 General Description

The AK9232/33/34 are 18/16/14-bit 1.1MSPS ZDS
* A/D converters. A polar coordinate calculation function is also integrated, and it reduces the load of DSP or microcomputer. The AK9232/33/34 are housed in a space-saving 24-pin QFN package.
* ZDS: Zero latency Delta Sigma A ZDS A/D converter .

AK9232 Datasheet (129.67 KB)

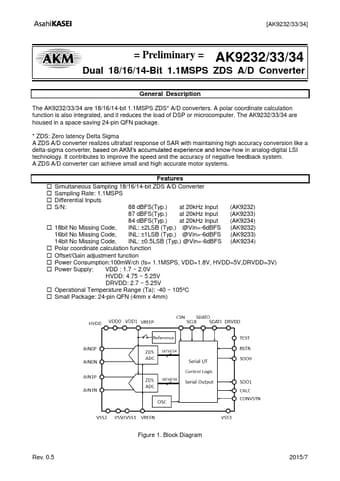

Preview of AK9232 PDF

Datasheet Details

Part number:

AK9232

Manufacturer:

AKM

File Size:

129.67 KB

Description:

Dual 18/16/14-bit 1.1msps zds a/d converter.
