AK9233 - Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter

This page provides the datasheet information for the AK9233, a member of the AK9232 Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter family.

Datasheet Summary

Description

The AK9232/33/34 are 18/16/14-bit 1.1MSPS ZDS

A/D converters.

A polar coordinate calculation function is also integrated, and it reduces the load of DSP or microcomputer.

The AK9232/33/34 are housed in a space-saving 24-pin QFN package.

ZDS: Zero latency Delta Sigma A ZDS A/D converter

Features

  •  Simultaneous Sampling 18/16/14-bit ZDS A/D Converter  Sampling Rate: 1.1MSPS  Differential Inputs  S/N: 88 dBFS(Typ. ) at 20kHz Input (AK9232) 87 dBFS(Typ. ) at 20kHz Input (AK9233) 84 dBFS(Typ. ) at 20kHz Input (AK9234)  18bit No Missing Code, INL: ±2LSB (Typ. ) @Vin=-6dBFS (AK9232) 16bit No Missing Code, INL: ±1LSB (Typ. ) @Vin=-6dBFS (AK9233) 14bit No Missing Code, INL: ±0.5LSB (Typ. ) @Vin=-6dBFS (AK9234)  Polar coordinate calculation function  Offset/Gain adjustment function.

📥 Download Datasheet

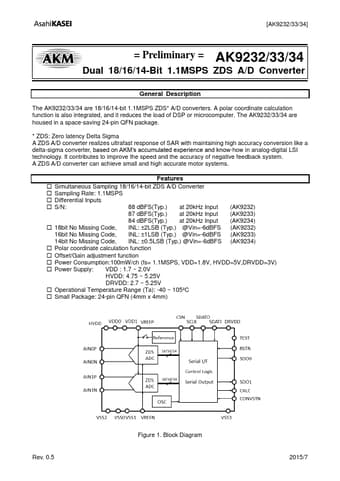

Datasheet preview – AK9233

Datasheet Details

Part number AK9233
Manufacturer AKM
File Size 129.67 KB
Description Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter
Datasheet download datasheet AK9233 Datasheet
Additional preview pages of the AK9233 datasheet.

📁 Similar Datasheet

  • AK90GB40 - Thyristor (SanRex)
  • AK90GB80 - Thyristor (SanRex)
  • AK90HB120 - Thyristor (SanRex)
  • AK90HB160 - Thyristor (SanRex)
  • AK93C10A - 16K / 32K / 64KBIT SERIAL CMOS EEPROM (Asahi Kasei Microsystems)
  • AK93C41A - 0.9V operation 1K / 2Kbit Serial CMOS EEPROM (Asahi Kasei Microsystems)
  • AK93C45A - 1K / 2K / 4K / 8KBIT SERIAL CMOS EEPROM (Asahi Kasei Microsystems)
  • AK93C45B - 1K / 2K / 4K / 8KBIT SERIAL CMOS EEPROM (Asahi Kasei Microsystems)
  • AK93C51A - 0.9V operation 1K / 2Kbit Serial CMOS EEPROM (Asahi Kasei Microsystems)
  • AK93C55A - 1K / 2K / 4K / 8KBIT SERIAL CMOS EEPROM (Asahi Kasei Microsystems)
Other Datasheets by AKM
  • AK9231 - Dual 12-Bit 1MSPS SAR A/D Converter
  • AK9232 - Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter
  • AK9234 - Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter
  • AK9223 - 2ch delta-sigma modulator
  • AK9240 - AFE
  • AK9242 - AFE
  • AK9243 - AFE
  • AK93C45C - 1K/2K/4Kbit Serial CMOS EEPROM

Full PDF Text Transcription

Click to expand full text
[AK9232/33/34] = Preliminary = AK9232/33/34 Dual 18/16/14-Bit 1.1MSPS ZDS A/D Converter General Description The AK9232/33/34 are 18/16/14-bit 1.1MSPS ZDS* A/D converters. A polar coordinate calculation function is also integrated, and it reduces the load of DSP or microcomputer. The AK9232/33/34 are housed in a space-saving 24-pin QFN package. * ZDS: Zero latency Delta Sigma A ZDS A/D converter realizes ultrafast response of SAR with maintaining high accuracy conversion like a delta-sigma converter, based on AKM’s accumulated experience and know-how in analog-digital LSI technology. It contributes to improve the speed and the accuracy of negative feedback system. A ZDS A/D converter can achieve small and high accurate motor systems.
