CZ-3703 Accurate Coreless Current Sensor

CZ-3703 Description

[CZ-3703] Clearance/Creepage 8mm CZ-3703 60Arms Accurate Coreless Current Sensor 1.General .
CZ-3703 is an open-type current sensor using Hall sensors, which outputs the analog voltage proportional to the AC/DC current.

CZ-3703 Features

* Compliant with safety standard of UL61800-5-1 (Clearance, Creepage distance ≧ 8.0mm)
* Certified with safety standards of UL-1577 and IEC/UL60950-1
* Maximum Primary Current : 60Arms
* High-accuracy : 0.5%F. S. (Ta=0～90°C Typ. )
* Quite small primary conductor

CZ-3703 Applications

* AC motors
* DC motors
* UPS
* General Inverters
* Power conditioners Also, CZ-3703 is suitable for other applications which are required isolation with small size and suppressing heat generation. 018010042-E-00 -1- 2018/8 [CZ-3703] 4. Table of Contents 1

📥 Download Datasheet

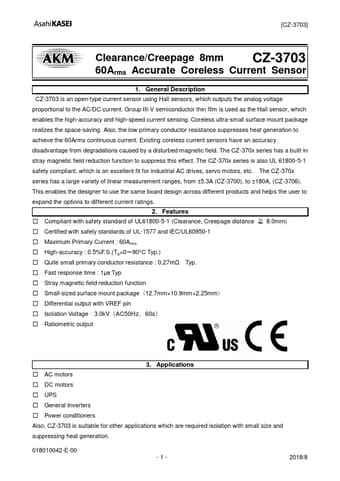

Preview of CZ-3703 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CZ-3703
Manufacturer
AKM
File Size
658.47 KB
Datasheet
CZ-3703-AKM.pdf
Description
Accurate Coreless Current Sensor
