CZ-3705 Datasheet - AKM

Accurate Coreless Current Sensor

CZ-3705 Features

* Compliant with safety standard of UL61800-5-1 (Clearance, Creepage distance ≧ 8.0mm)

* Certified with safety standards of UL-1577 and IEC/UL60950-1

* Maximum Primary Current : 60Arms

* High-accuracy : 0.5%F.S.(Ta=0～90°C Typ.)

* Quite small primary conductor

CZ-3705 General Description

CZ-3705 is an open-type current sensor using Hall sensors, which outputs the analog voltage proportional to the AC/DC current. Group III-V semiconductor thin film is used as the Hall sensor, which enables the high-accuracy and high-speed current sensing. Coreless ultra-small surface mount package re.

CZ-3705 Datasheet (658.97 KB)

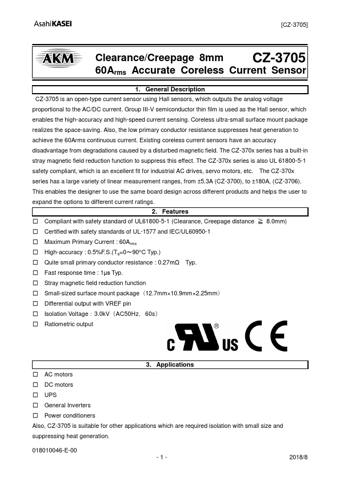

Preview of CZ-3705 PDF

Datasheet Details

Part number:

CZ-3705

Manufacturer:

AKM

File Size:

658.97 KB

Description:

Accurate coreless current sensor.
