SSGM130100, SSGM120100 Datasheet - ALPS

SSGM130100 2 to 10 Circuits-designed Type

Detector Slide Push Rotary Power Dual-in-line Package Type SSGM 2 to 10 Circuits-designed Type Highly reliable IC-size type with gold contact supports automatic insertion Typical Specifications Items Rating（max.）（/ min.） （Resistive load） Contact resistance （Initial performance / After lifetime） Specifications 25mA 24V DC（At opening and closing） 0.1A 50V DC（When energized）/ 50μA 3V DC 50mΩmax. / 100mΩ max. Operating force 3.5±2.5N Operating life Without load With load 3,000 c.

SSGM120100-ALPS.pdf

This datasheet PDF includes multiple part numbers: SSGM130100, SSGM120100. Please refer to the document for exact specifications by model.

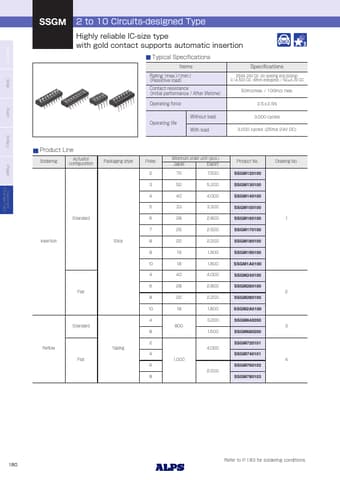

SSGM130100 Datasheet Preview Page 2 SSGM130100 Datasheet Preview Page 3

Datasheet Details

Part number:

SSGM130100, SSGM120100

Manufacturer:

ALPS

File Size:

276.53 KB

Description:

2 to 10 circuits-designed type.

Note:

This datasheet PDF includes multiple part numbers: SSGM130100, SSGM120100.
Please refer to the document for exact specifications by model.
