Am9147 Datasheet - AMD

Am9147 4096 x 1 Static R/W RAM

The Am9147 is a high performance, 4096-bit, static, read/write, random access memory. It is organized as 4096 words by one bit per word. All interface signal levels are identical to TTL specifications, providing good noise immunity and simplified system design. All inputs are purely capacitive MOS l.
Am9147 4096 x 1 Static R/W Random Access Memory PRELIMINARY DISTINCTIVE CHARACTERISTICS High speed - access times down to 55ns maximum 4K x 1 organization Single +5 volt power supply Fully static storage and interface circuitry No clocks or timing signals required Equal access and cycle times Automatic power-down when deselected Low power dissipation - Am9147: 880mW active, 110mW power down Standard 18-pi.

Am9147-AMD.pdf

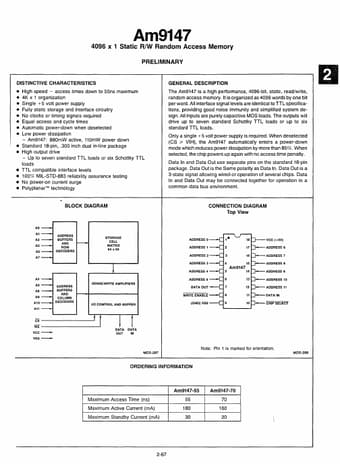

Preview of Am9147 PDF
Am9147 Datasheet Preview Page 2 Am9147 Datasheet Preview Page 3

Datasheet Details

Part number:

Am9147

Manufacturer:

AMD

File Size:

200.92 KB

Description:

4096 x 1 static r/w ram.
