AA41

CMOS Gate Array

AA41 General Description

AA4x is a family of 4-input gates which perform the logical AND function. Logic Symbol Truth Table AA4x A B C Q D A B C Q D A B CDQ LXXXL XLXXL XXLXL XXXL L HHHHH HDL Syntax Verilog AA4x inst_name (Q, A, B, C, D); VHDL inst_name: AA4x port map (Q, A, B, C, D); Pin Loading Pin Name A B.

AA41 Datasheet (26.28 KB)

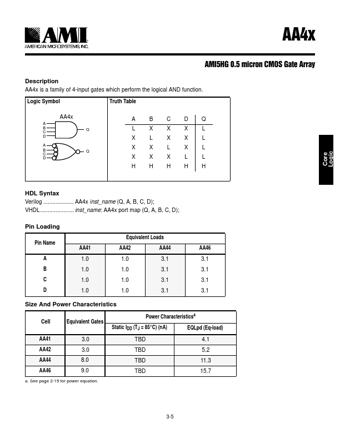

Preview of AA41 PDF

Datasheet Details

Part number:

AA41

Manufacturer:

AMI

File Size:

26.28 KB

Description:

Cmos gate array.
