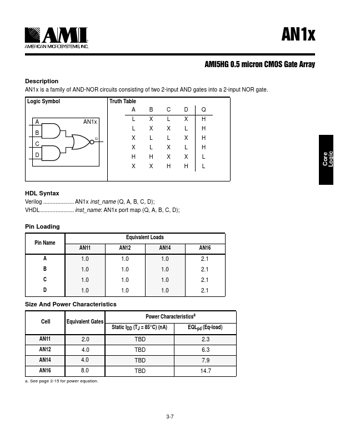

AN16, AN11, CMOS Gate Array

AN1x is a family of AND-NOR circuits consisting of two 2-input AND gates into a 2-input NOR gate.

Logic Symbol A B C D Truth Table A B CDQ AN1x L X L XH LXXLH Q X L L XH XLXLH HHXX L X XHH L HDL Syntax Verilog AN1x inst_name (Q, A, B, C, D); VHDL inst_name: AN1x port map (Q, A, B, C, D);
