ANA2

CMOS Gate Array

ANA2 General Description

ANAx is a family of AND-NOR circuits consisting of two 3-input AND gates into a 3-input NOR gate. Logic Symbol Truth Table A B ANAx A BCDE FGQ C HHHXXXX L D E Q XXXHHHX L F XXXXXXHL All other combinations H G Core Logic HDL Syntax Verilog ANAx inst_name (Q, A, B, C, D, E, F, G); VHDL .

ANA2 Datasheet (24.90 KB)

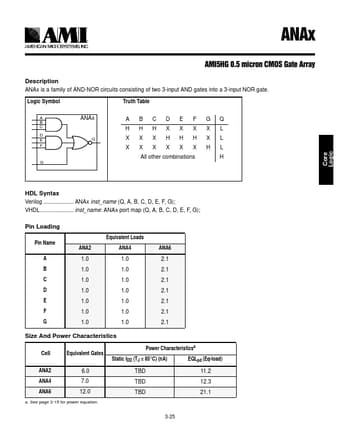

Preview of ANA2 PDF

Datasheet Details

Part number:

ANA2

Manufacturer:

AMI

File Size:

24.90 KB

Description:

Cmos gate array.
