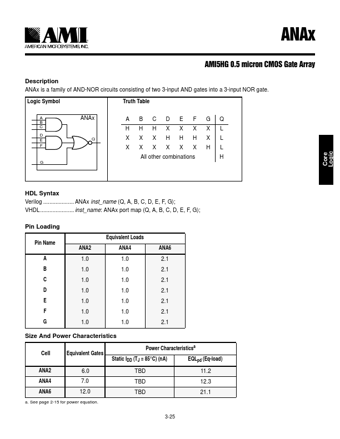

ANAx is a family of AND-NOR circuits consisting of two 3-input AND gates into a 3-input NOR gate.
Logic Symbol Truth Table A B ANAx A BCDE FGQ C HHHXXXX L D E Q XXXHHHX L F XXXXXXHL All other combinations H G Core Logic HDL Syntax Verilog ANAx inst_name (Q, A, B, C, D, E, F, G); VHDL
Datasheet Details
ANA6, ANA2
AMI
24.90 KB
Cmos gate array.
This datasheet PDF includes multiple part numbers: ANA6, ANA2.
Please refer to the document for exact specifications by model.
