IDPX3 CMOS Gate Array

IDPX3 is a non-inverting, PCI-level input buffer piece. IDPX3 is for the 33MHz PCI ODPSXE16 piece. Logic Symbol Truth Table IDPX3 QC P PADM D PADM QC LL HH HDL Syntax Verilog IDPX3 inst_name (QC, PADM); VHDL inst_name: IDPX3 port map (QC, PADM); Pin Loading Pin Name PADM (pF) Load IDPX3 4.90.

IDPX3 Datasheet (17.97 KB)

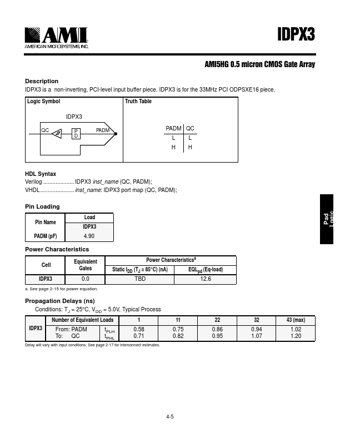

IDPX3 Datasheet Preview — Preview of IDPX3 PDF

Datasheet Details

Part number:

IDPX3

Manufacturer:

AMI

File Size:

17.97 KB

Description:

Cmos gate array.
