ITA2, ITA1 Datasheet - AMI

ITA2 CMOS Gate Array

ITAx is a family of non-inverting internal tristate buffers with active low enable. Logic Symbol Truth Table ITAx EN AQ EN AQ EN A Q HXZ LLL L HH Z = High Impedance HDL Syntax Verilog ITAx inst_name (Q, A, EN); VHDL inst_name: ITAx port map (Q, A, EN); Pin Loading Pin Name A EN Q ITA1 1.0 1..

ITA1-AMI.pdf

This datasheet PDF includes multiple part numbers: ITA2, ITA1. Please refer to the document for exact specifications by model.

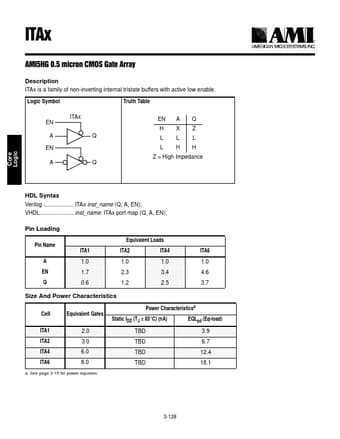

ITA2 Datasheet Preview Page 2

Datasheet Details

Part number:

ITA2, ITA1

Manufacturer:

AMI

File Size:

25.84 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: ITA2, ITA1.
Please refer to the document for exact specifications by model.
