ITB6

CMOS Gate Array

ITB6 General Description

ITBx is a family of inverting internal tristate buffers with active low enable. Logic Symbol Truth Table ITBx EN A QN EN A QN EN A QN HXZ L LH LHL Z = High Impedance HDL Syntax Verilog ITBx inst_name (QN, A, EN); VHDL inst_name: ITBx port map (QN, A, EN); Pin Loading Pin Name A EN QN ITB1 1..

ITB6 Datasheet (26.63 KB)

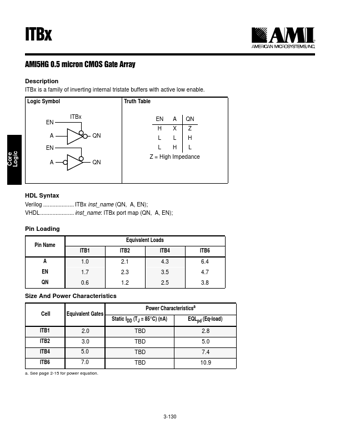

Preview of ITB6 PDF

Datasheet Details

Part number:

ITB6

Manufacturer:

AMI

File Size:

26.63 KB

Description:

Cmos gate array.
