NO26

CMOS Gate Array

NO26 General Description

NO2x is a family of 2-input gates which perform the logical NOR function. Logic Symbol Truth Table NO2x A Q B A Q B ABQ L LH LHL HL L HH L HDL Syntax Verilog NO2x inst_name (Q, A, B); VHDL inst_name: NO2x port map (Q, A, B); Pin Loading Pin Name A B NO21 1.0 1.0 NO22 2.1 2.1 Equivalent Loa.

NO26 Datasheet (25.94 KB)

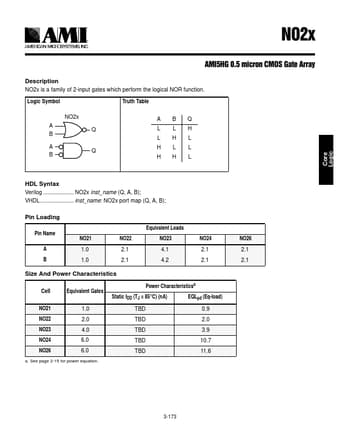

Preview of NO26 PDF

Datasheet Details

Part number:

NO26

Manufacturer:

AMI

File Size:

25.94 KB

Description:

Cmos gate array.
