ODTSXE16 CMOS Gate Array

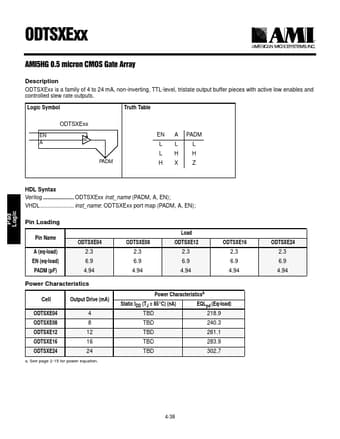

ODTSXExx is a family of 4 to 24 mA, non-inverting, TTL-level, tristate output buffer pieces with active low enables and controlled slew rate outputs. Logic Symbol Truth Table ODTSXExx EN A SL PADM EN A PADM LL L LH H HX Z HDL Syntax Verilog ODTSXExx inst_name (PADM, A, EN); VHDL inst_name.

ODTSXE04-AMI.pdf

ODTSXE16 Datasheet Preview — This datasheet PDF includes multiple part numbers: ODTSXE16, ODTSXE04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ODTSXE16, ODTSXE04

Manufacturer:

AMI

File Size:

25.87 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: ODTSXE16, ODTSXE04.
Please refer to the document for exact specifications by model.
