ODTSXN12, ODTSXN04 Datasheet - AMI

ODTSXN12 CMOS Gate Array

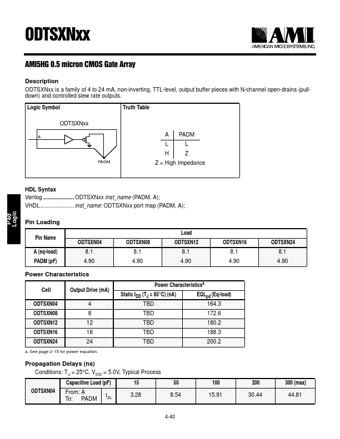

ODTSXNxx is a family of 4 to 24 mA, non-inverting, TTL-level, output buffer pieces with N-channel open-drains (pulldown) and controlled slew rate outputs. Logic Symbol Truth Table ODTSXNxx A PADM A PADM LL HZ Z = High Impedance Pad Logic HDL Syntax Verilog ODTSXNxx inst_name (PADM, A); VHDL i.

ODTSXN04-AMI.pdf

This datasheet PDF includes multiple part numbers: ODTSXN12, ODTSXN04. Please refer to the document for exact specifications by model.
ODTSXN12 Datasheet Preview Page 2

Datasheet Details

Part number:

ODTSXN12, ODTSXN04

Manufacturer:

AMI

File Size:

25.34 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: ODTSXN12, ODTSXN04.
Please refer to the document for exact specifications by model.
