ODTXXN16

CMOS Gate Array

ODTXXN16 Datasheet (25.49 KB)

Preview of ODTXXN16 PDF Datasheet

Datasheet Details

Part number:

ODTXXN16

Manufacturer:

AMI

File Size:

25.49 KB

Description:

Cmos gate array

ODTXXN16 General Description

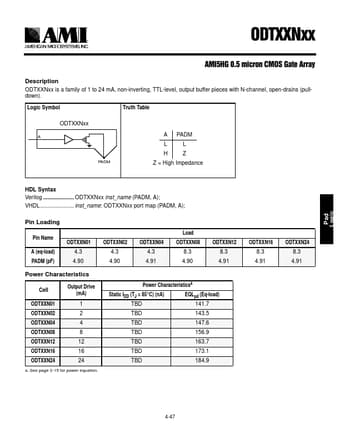

ODTXXNxx is a family of 1 to 24 mA, non-inverting, TTL-level, output buffer pieces with N-channel, open-drains (pulldown). Logic Symbol Truth Table ODTXXNxx A PADM A PADM LL HZ Z = High Impedance HDL Syntax Verilog ODTXXNxx inst_name (PADM, A); VHDL inst_name: ODTXXNxx port map (PADM, A); Pin.
