ON84

CMOS Gate Array

ON84 General Description

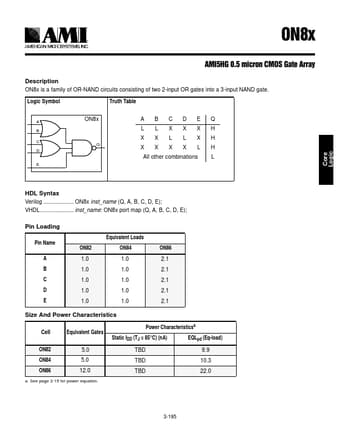

ON8x is a family of OR-NAND circuits consisting of two 2-input OR gates into a 3-input NAND gate. Logic Symbol Truth Table A ON8x ABCDEQ B L LXXXH XXL LXH C D Q XXXXLH All other combinations L E HDL Syntax Verilog ON8x inst_name (Q, A, B, C, D, E); VHDL inst_name: ON8x port map (Q, A, B.

ON84 Datasheet (25.84 KB)

Preview of ON84 PDF

Datasheet Details

Part number:

ON84

Manufacturer:

AMI

File Size:

25.84 KB

Description:

Cmos gate array.
