OR24 CMOS Gate Array

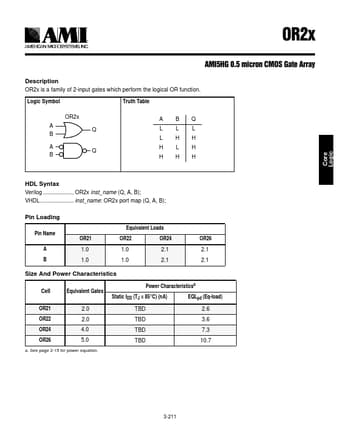

OR2x is a family of 2-input gates which perform the logical OR function. Logic Symbol Truth Table OR2x A Q B A Q B A BQ LLL LHH HLH HHH HDL Syntax Verilog OR2x inst_name (Q, A, B); VHDL inst_name: OR2x port map (Q, A, B); Pin Loading Pin Name A B OR21 1.0 1.0 Equivalent Loads OR22 OR24 1.
