A23L1616 2M X 16 / 4M X 8 BIT CMOS MASK ROM

Pin No. Symbol 44L SOP (A23L1616) 2-11, 34-44 15-22, 24-30 31 12 14 33 23 13, 32 1 48L TSOP (A23L1616) 2-11, 13-23 28-35, 39-45 46 24 27 1 37-38 12, 25-26, 47-48 36 48L TSOP (A23L16161) 1-10, 16-25, 48 29-36, 38-44 45 26 28 47 37 27, 46 11-15 48L TSOP (A23L16162) 1-8, 10 15-25, 48 29-36, 38-44 45 2.

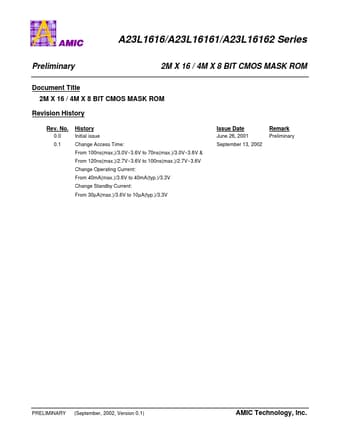

A23L1616/A23L16161/A23L16162 Series Preliminary Document Title 2M X 16 / 4M X 8 BIT CMOS MASK ROM Revision History Rev. No. 0.0 0.1 2M X 16 / 4M X 8 BIT CMOS MASK ROM History Initial issue Change Access Time: From 100ns(max.)/3.0V~3.6V to 70ns(max.)/3.0V~3.6V & From 120ns(max.)/2.7V~3.6V to 100ns(max.)/2.7V~3.6V Change Operating Current: From 40mA(max.)/3.6V to 40mA(typ.)/3.3V Change Standby Current: From 30µA(max.)/3.6V to 10µA(typ.)/3.3V Issue Date June 26, 2001 September 13, 2002 Remark P.

A23L1616 Features

* n 2M x 16 bit or 4M x 8 bit organization n Supply voltage range: 2.7V~3.6V n Access time: 70ns (max.)/3.0V~3.6V 100ns (max.)/2.7V~3.6V n Current: Operating: 40mA (typ.)/3.3V Standby: 10µA (typ.)/3.3V n Three-state outputs for wired-OR expansion n Full static operation n All inputs and outputs are di
