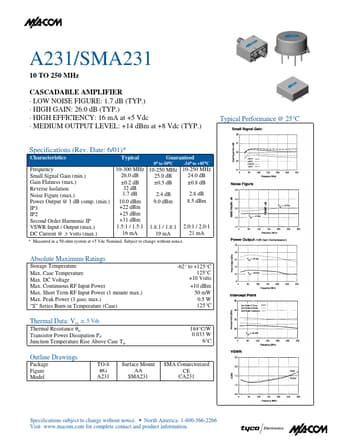

A231 Datasheet - Tyco Electronics

A231 - 10 TO 250 MHz CASCADABLE AMPLIFIER

A231/SMA231 10 TO 250 MHz CASCADABLE AMPLIFIER LOW NOISE FIGURE: 1.7 dB (TYP.) HIGH GAIN: 26.0 dB (TYP.) HIGH EFFICIENCY: 16 mA at +5 Vdc MEDIUM OUTPUT LEVEL: +14 dBm at +8 Vdc (TYP.) Specifications (Rev. Date: 6/01) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 5 Volts (max.) Typical 0° to 50°C Typ.

A231_TycoElectronics.pdf
