AM-480800D1TZQW-00H

LCD

AM-480800D1TZQW-00H Features

* LCD 4.3 inch Amorphous-TFT-LCD (Thin Film Transistor Liquid Crystal Display) for mobile-phone or handy electrical equipments. (1) Construction : Amorphous silicon TFT-LCD with driving system, Bezel and White LED Backlight. (2) LCD type : Transmissive , Normally Black. (3) Interface : 24BIT RGB + SPI

AM-480800D1TZQW-00H Datasheet (946.25 KB)

Preview of AM-480800D1TZQW-00H PDF

Datasheet Details

Part number:

AM-480800D1TZQW-00H

Manufacturer:

AMPIRE

File Size:

946.25 KB

Description:

Lcd.

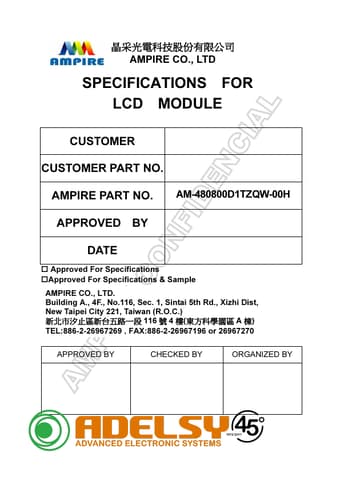

AMPIRE CO., LTD SPECIFICATIONS FOR LCD MODULE CUSTOMER CUSTOMER PART NO. AMPIRE PART NO. AM-480800D1TZQW-00H APPROVED BY DATE Approved For Speci.
