AO22 Datasheet - AMS

AO22 AND / OR circuit

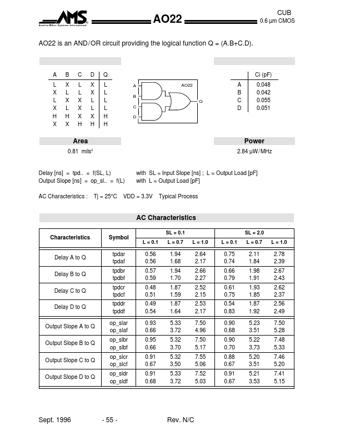

R Austria Mikro Systeme International AO22 CUB 0.6 µm CMOS AO22 is an AND / OR circuit providing the logical function Q = (A.B+C.D). A L X L X H X B X L X L H X C L L X X X H D X X L L X H Q L L L L H H A B Q C D AO22 Ci (pF) A B C D 0.048 0.042 0.055 0.051 Area 0.81 mils2 Power 2.84 µW / MHz Delay [ns] = tpd.. = f(SL, L) Output Slope [ns] = op_sl.. = f(L) AC Characteristics : Tj = 25°C with SL = Input Slope [ns] ; L = Output Load [pF] with L = Output Load [pF] Typical Process VDD.

AO22 Datasheet (67.25 KB)

AO22 Datasheet Preview — Preview of AO22 PDF

Datasheet Details

Part number:

AO22

Manufacturer:

AMS

File Size:

67.25 KB

Description:

And / or circuit.
