AS3517 - Stereo Audio Codec

AS3517 Description

www.DataSheet4U.com AS3517 Product Brief austria micro systems AS3517 General .
The AS3517 is a low power stereo audio codec and is designed for Portable Digital Audio Applications.

AS3517 Features

* Multi-bit Sigma Delta Converters
* DAC: 18bit with 94dB SNR (‘A’ weighted)
* ADC: 20bit with 94dB SNR (‘A’ weighted)
* Sampling Frequency: 8-48kHz 2 Microphone Inputs
* 3 gain pre-setting (28dB/34dB/40dB) and OFF
* 32 gain steps @1.5dB and MUTE
* suppl

AS3517 Applications

* It allows playback and recording in CD quality. It has a variety of audio inputs and outputs to directly connect electret microphones, 16Ω headset and auxiliary signal sources via a 10-channel mixer. It only consumes 20mW in playback mode. Further the device offers advanced power management functio

📥 Download Datasheet

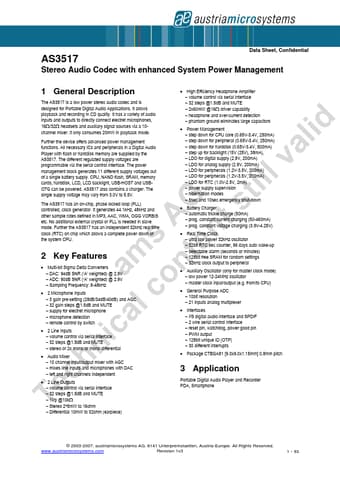

Preview of AS3517 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS3517
Manufacturer
AMSCO
File Size
2.48 MB
Datasheet
AS3517_AMSCO.pdf
Description
Stereo Audio Codec
