AS35-M23S

23-Bits Single-Turn Absolute Encoder

AS35-M23S Features

* offer good noise immunity for a robust data transmission at 2.5Mb/s in harsh industrial applications. Alternatively, the industry standard single-directional Synchronous Serial Interface (SSI) protocol is offered at a data transmission rate of 1 MHz. One of the key advantages of the AS35-M23S series

AS35-M23S General Description

The Broadcom® AS35-M21S/M23S series encoder is a high-resolution optical absolute encoder module, which offers up to 23 bits single-turn resolution. This absolute encoder series is a module encoder consisting of a patterned disk, a light source, and photosensitive elements to translate the mechanica.

AS35-M23S Datasheet (759.66 KB)

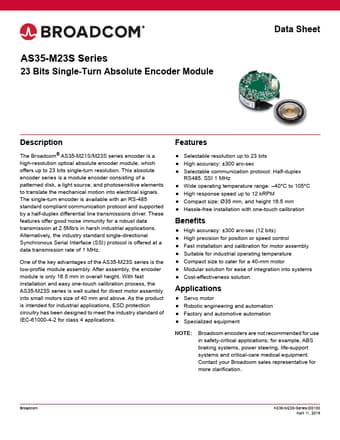

Preview of AS35-M23S PDF

Datasheet Details

Part number:

AS35-M23S

Manufacturer:

Broadcom

File Size:

759.66 KB

Description:

23-bits single-turn absolute encoder.
