AM5868

5-channel BTL Driver

AM5868 Features

* 1) Two comparators built-in: Two general-purpose voltage comparators are built-in. 2) Two channels are voltage-type BTL drivers for actuators of tracking and focus. Two channels are voltage-type BTL driver for sled and spindle motors. It is also built-in one channel bi-direction DC motor driver for

AM5868 General Description

PIN No Pin Name Function 1 VINFC Input for focus driver 2 OP2IN- Comparator 2 input (-) 3 OP2IN+ Comparator 2 input (+) 4 VINSL+ OPAMP input (+) for the sled driver 5 OP2OUT Comparator 2 output 6 FWD Tray driver forward input 7 REV Tray driver reverse input 8 Vcc1 Vcc for .

AM5868 Datasheet (910.05 KB)

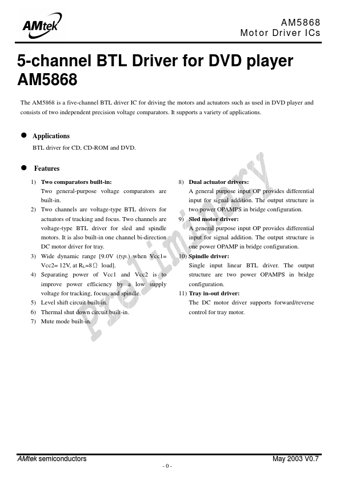

Preview of AM5868 PDF

Datasheet Details

Part number:

AM5868

Manufacturer:

AMtek

File Size:

910.05 KB

Description:

5-channel btl driver.
AM5868 Motor Driver ICs 5-channel BTL Driver for DVD player AM5868 The AM5868 is a five-channel BTL driver IC for driving the motors and actuators s.
