AM5829P Datasheet - Analog Power

AM5829P P-Channel MOSFET

Analog Power AM5829P P-Channel 20-V (D-S) MOSFET With Schottky Diode These miniature surface mount MOSFETs utilize a MOSFET PRODUCT SUMMARY high cell density trench process to provide low VDS (V) rDS(on) (OHM) ID (A) rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and -20 0.110 @VGS = -4.5V ±3.6 0.160 @VGS = -2.5V ±3.0 battery-powered products such as computers, printers, PCMCIA cards, cellular.

AM5829P-AnalogPower.pdf

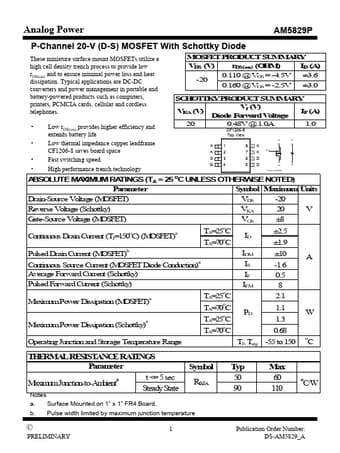

Preview of AM5829P PDF
AM5829P Datasheet Preview Page 2 AM5829P Datasheet Preview Page 3

Datasheet Details

Part number:

AM5829P

Manufacturer:

Analog Power

File Size:

250.17 KB

Description:

P-channel mosfet.
