ACA1205 750/870 MHZ CATV LINE AMPLIFIER

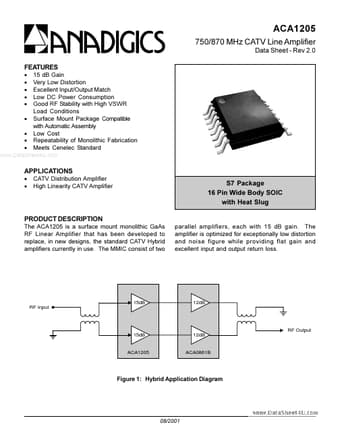

The ACA1205 is a surface mount monolithic GaAs RF Linear Amplifier that has been developed to replace, in new designs, the standard CATV Hybrid amplifiers currently in use. The MMIC consist of two RF Input 15dB 12dB 15dB 12dB RF Output ACA1205 ACA0861B Figure 1: Hybrid Application Diagram .

ACA1205 Features

* Data Sheet - Rev 2.0 15 dB Gain Very Low Distortion Excellent Input/Output Match Low DC Power Consumption Good RF Stability with High VSWR Load Conditions Surface Mount Package Compatible with Automatic Assembly Low Cost Repeatability of Monoli

ACA-1205.pdf

This datasheet PDF includes multiple part numbers: ACA1205, ACA. Please refer to the document for exact specifications by model.
ACA1205 Datasheet Preview Page 2 ACA1205 Datasheet Preview Page 3

Datasheet Details

Part number:

ACA1205, ACA

Manufacturer:

ANADIGICS Inc

File Size:

271.08 KB

Description:

750/870 mhz catv line amplifier.

Note:

This datasheet PDF includes multiple part numbers: ACA1205, ACA.
Please refer to the document for exact specifications by model.
