ACA1212 Datasheet - Skyworks Solutions

1.2GHz CATV Line Amplifier MMIC

ACA1212 Features

* 50 to 1218 MHz frequency range

* Flat gain

* Very low distortion

* Excellent input/output match

* Low DC power consumption

* Single 12 V supply

* Surface-mount package compatible with automatic assembly

* Repeatability of monolithicfabrication

* RoHS-compliant p

ACA1212 General Description

The ACA1212 is a highly linear, high output power integrated RF amplifier designed for CATV head ends and HFC distribution systems. The IC consists of two parallel amplifiers cascaded between transmission line baluns that are optimized for exceptionally low distortion,.

ACA1212 Datasheet (451.71 KB)

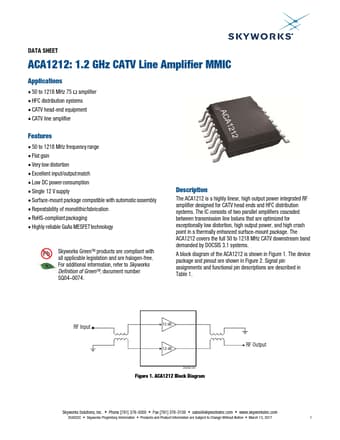

ACA1212 Datasheet Preview — Preview of ACA1212 PDF

Datasheet Details

Part number:

ACA1212

Manufacturer:

Skyworks Solutions

File Size:

451.71 KB

Description:

1.2ghz catv line amplifier mmic.
DATA SHEET ACA1212: 1.2 GHz CATV Line Amplifier MMIC Applications 50 to 1218 MHz 75 Ω amplifier HFC distribution systems CATV head-e.
