AMT121302

1.25Gb/s 1310/1550nm PIN-TIA

AMT121302 Features

* 1.25 Gb/s Differential Output TIA

* 5.0V Operation

* Automatic Gain Control

* 75mm 1270-1560nm InGaAs Photodetector

* 1000 MHz Minimum Bandwidth

* -28dBm Typical Sensitivity

* TO-46 Ultra Flat-Window or Lens Package APPLICATIONS

* Gigabit Ethernet (1.250 Gb/s)

AMT121302 General Description

The ANADIGICS AMT121302, packaged in a TO46 flat window or lens can, is a 5V integrated photodetector and transimpedance amplifier (TIA) used to convert a long wavelength (1270-1560nm) input optical signal into a differential output voltage, and is manufactured in ANADIGICS’ 6” GaAs wafer fabricatio.

AMT121302 Datasheet (594.74 KB)

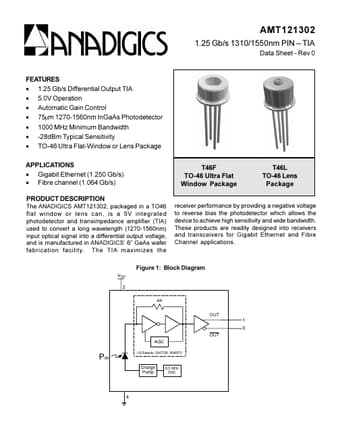

Preview of AMT121302 PDF

Datasheet Details

Part number:

AMT121302

Manufacturer:

ANADIGICS Inc

File Size:

594.74 KB

Description:

1.25gb/s 1310/1550nm pin-tia.
