ARA2000S23

CATV Reverse Amplifier

ANADIGICS Inc

ARA2000S23 Features

* Low cost integrated monolithic GaAs amplifier with step attenuator. Attenuation Range: 0 58 dB, variable in 1 dB steps via 16 bit serial input. Meets DOCSIS distortion requirements at +60 dBmV Low distortion & Low noise figure Frequency range: 5 100 MHz

ARA2000S23 General Description

The ARA2000S23 is a GaAs IC designed to provide the reverse path amplification and output level control functions in a CATV Set-Top Box or Cable Modem. It incorporates a digitally controlled precision step attenuator that is preceded by an ultra low noise amplifier stage, and followed by an ultra-li.

ARA2000S23 Datasheet (277.43 KB)

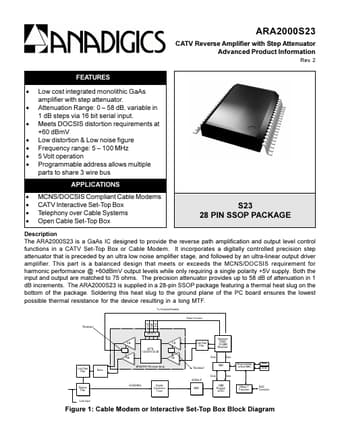

ARA2000S23 Datasheet Preview — Preview of ARA2000S23 PDF

Datasheet Details

Part number:

ARA2000S23

Manufacturer:

ANADIGICS Inc

File Size:

277.43 KB

Description:

Catv reverse amplifier.
