ARA2017

Programmable Gain Amplifier

Anadigics

ARA2017 Features

* www.DataSheet4U.com

* High Linearity, High Output Power Integrated Amplifier with Programmable Gain Control

* Attenuation Range: 0-58 dB, Adjustable in 2 dB Increments via a 3-wire Serial Control

* 33 dB Gain (at Minimum Attenuation)

* Low Distortion Products at

ARA2017 General Description

The ARA2017 is a highly linear, high output power, programmable gain amplifier optimized for DOCSIS 3.0 cable modem and E-MTA applications. Using a low noise input amplification stage and an ultra linear output driver amplifier, the device generates extremely low distortion products at the high out.

ARA2017 Datasheet (570.90 KB)

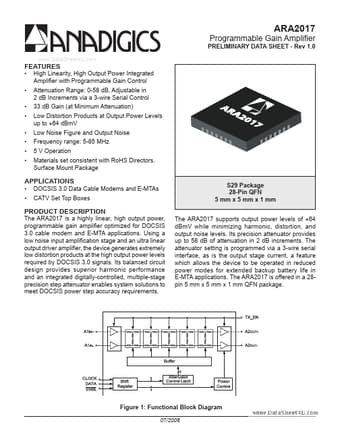

ARA2017 Datasheet Preview — Preview of ARA2017 PDF

Datasheet Details

Part number:

ARA2017

Manufacturer:

Anadigics

File Size:

570.90 KB

Description:

Programmable gain amplifier.
