RFS1006

3.4-3.6 GHz Power Amplifier

RFS1006 Features

* 31 dBm P1dB

* 21 dB gain GND RF OUT VG1 RF OUT GND RF OUT N/C GND 7 N/C INDEX AREA 8 N/C 9 GND 4.00 10 VG2 11 GND 4.00 12 VG3 1.00 0.80 4 0.45 0.35 0.275 0.225 Pin 1 Functional Block Diagram 24 1 1 ALL DIMENSIONS ARE IN MILLIMETERS, ANGLES IN DEGREES. 2 THE TERMINA

RFS1006 General Description

The RFS1006 power amplifier is a high-power, high-performance GaAs MESFET IC designed for use in transmit applications in the 3.4-3.6 GHz frequency band. With a P1dB of 31 dBm, the device is ideal as a final stage for fixed wireless applications requiring high transmit linearity. The input and outpu.

RFS1006 Datasheet (71.40 KB)

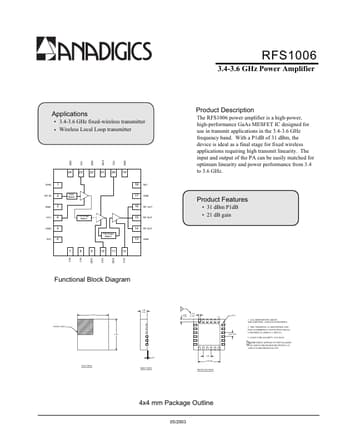

Preview of RFS1006 PDF

Datasheet Details

Part number:

RFS1006

Manufacturer:

ANADIGICS Inc

File Size:

71.40 KB

Description:

3.4-3.6 ghz power amplifier.
RFS1006 3.4-3.6 GHz Power Amplifier Applications

* 3.4-3.6 GHz fixed-wireless transmitter

* Wireless Local Loop transmitter Product .
