RFS1113 Shielded Power Inductors

Document 1002-1 Shielded Power Inductors RFS1113 Low cost, high current power inductors 6.8 µH to 2.7 mH inductance range Core material Ferrite Terminations Tin-silver (96.5/3.5) over tin over copper over steel. Other terminations available at additional cost. Weight 4.1 4.7 g Ambient temperature 40°C to +85°C with Irms current Maximum part temperature +125°C (ambient + temp rise) Storage temperature Component: 40°C to +125°C. Tr.

RFS1113 Datasheet (181.35 KB)

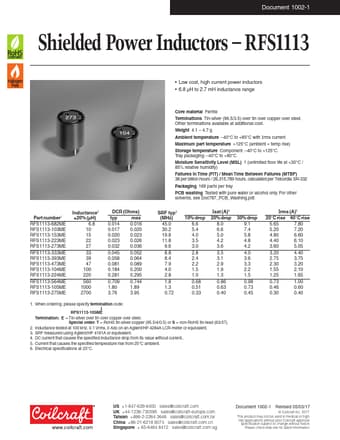

RFS1113 Datasheet Preview — Preview of RFS1113 PDF

Datasheet Details

Part number:

RFS1113

Manufacturer:

Coilcraft

File Size:

181.35 KB

Description:

Shielded power inductors.
