15KPA120CA, 15KPA17A, Axial Lead Transient Voltage Suppressors

15KP Series Reverse Voltage: 17 to 280 V Peak Pulse Power: 15000 W Axial Lead Transient Voltage Suppressors .

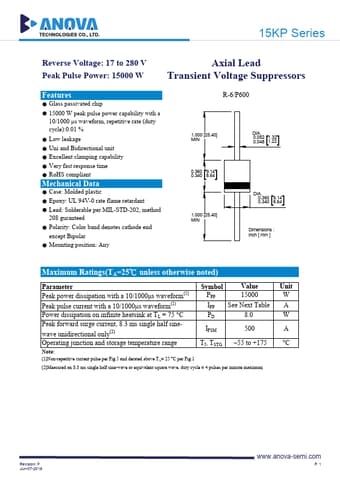

datasheet Preview Page 1 from Datasheet4u.com

15KPA17A-ANOVA.pdf

15KPA120CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 15KPA120CA, 15KPA17A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

15KPA120CA, 15KPA17A

Manufacturer:

ANOVA

File Size:

195.33 KB

Description:

Axial Lead Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: 15KPA120CA, 15KPA17A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip
* 15000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
* Low leakage
* Uni and Bidirectional unit
* Excellent clamping capability
* Very fast response time
* RoHS compliant Mechanical Data
* Case:
