APA2037

3W Stereo Fully Differential Audio Power Amplifier

APA2037 Features

* Operating Voltage: 2.4V~5.5V

* Fully Differential Class-AB Amplifier

* High PSRR and Excellent RF Rectification Immunity

* Low Crosstalk

* 3W Per Channel Output Power into 3Ω Load at V =5V DD

* Thermal and Over-Current Protections

* Built-In

APA2037 General Description

The APA2037 is a stereo, fully differential Class-AB audio amplifier which can operate with supply voltage from 2.4V to 5V and is available in a TQFN5x5-20A package. The built-in feedback resistors can minimize the external component counts and save the PCB space. High PSRR and fully differential ar.

APA2037 Datasheet (495.98 KB)

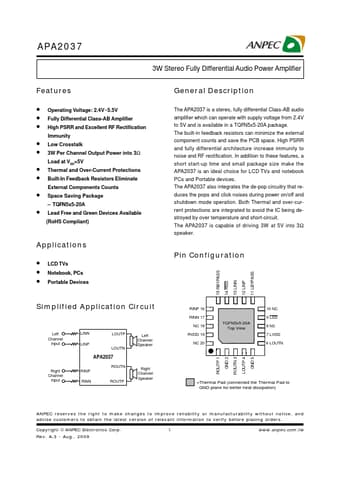

Preview of APA2037 PDF

Datasheet Details

Part number:

APA2037

Manufacturer:

ANPEC

File Size:

495.98 KB

Description:

3w stereo fully differential audio power amplifier.
