APW7506 Synchronous Buck Regulator

APW7506 Description

APW7506 1.5MHz, 1.5A(peak) Synchronous Buck Regulator .
APW7506 is a 1.

APW7506 Features

* 1.5A Output Peak Current
* Wide 3V~5.5V Input Voltage
* Fixed 1.5MHz Switching Frequency
* Low Dropout Operating at 100% Duty Cycle
* 30µA Quiescent Current
* Integrate Synchronous Rectifier
* 0.6V Reference Voltage
* Current-Mode Ope

APW7506 Applications

* 100% duty cycle provides low dropout operation, extending battery life in portable electrical devices. The internally fixed 1.5MHz operating frequency allows the using of small surface mount inductors and capacitors. The synchronous switches included inside increase the efficiency and eliminate the

📥 Download Datasheet

Preview of APW7506 PDF

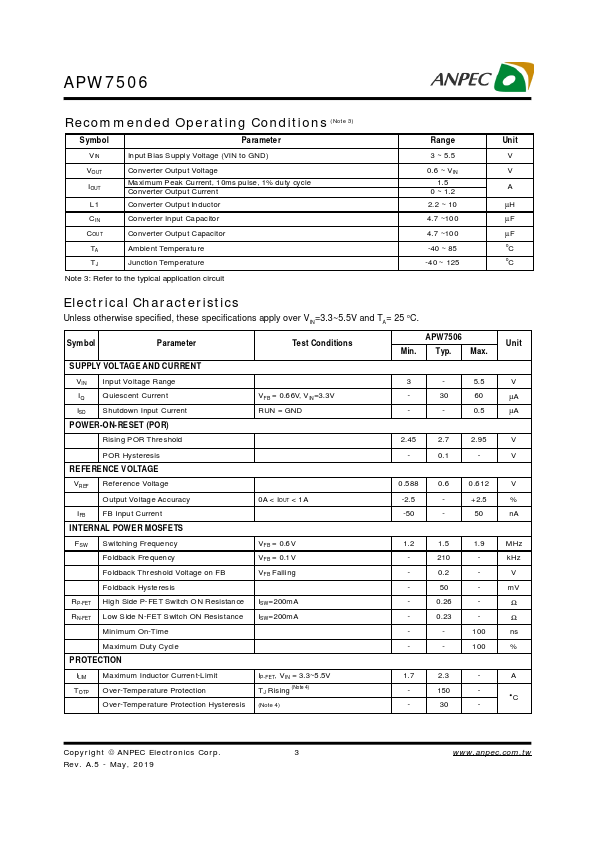

datasheet Preview Page 2 datasheet Preview Page 3
