APW8726 PWM Controller

APW8726 Description

APW8726 5V to 12V Single Buck Voltage Mode PWM Controller .
The APW8726 is a voltage mode, fixed 300kHz switching frequency, synchronous buck converter.

APW8726 Applications

* A poweron-reset (POR) circuit monitors the VCC supply voltage to prevent wrong logic controls. A built-in soft-start circuit prevents the output voltages from overshoot as well as limits the input current. An internal 0.6V temperature-compensated reference voltage with high accuracy is designed to

📥 Download Datasheet

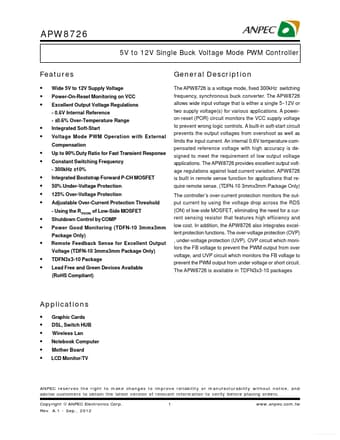

Preview of APW8726 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APW8726
Manufacturer
ANPEC
File Size
637.61 KB
Datasheet
APW8726_ANPEC.pdf
Description
PWM Controller
