APW8727L, APW8727 Synchronous single PWM Controller

APW8727L Description

APW8727/L Synchronous single PWM Controller with Multiform supply Voltage .
The APW8727 is a single-phase, constant on-time, synchronous PW M controller, which drives N-channel MOSFETs.

APW8727L Applications

* The APW8727 provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the APW8727 provides very high efficiency over light to heavy loads with loadingmodulated switching frequencies. In PWM Mode, the converter works nearly at cons

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APW8727L, APW8727. Please refer to the document for exact specifications by model.

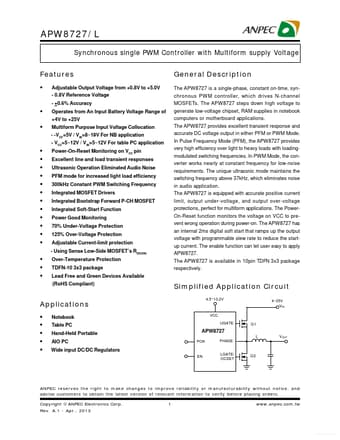

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APW8727L, APW8727
Manufacturer
ANPEC
File Size
416.75 KB
Datasheet
APW8727_ANPEC.pdf
Description
Synchronous single PWM Controller
Note
This datasheet PDF includes multiple part numbers: APW8727L, APW8727.
Please refer to the document for exact specifications by model.
