AD2060T - 60V 20A Ultra Low VF Schottky

Datasheet Summary

Features

  • AD2060T TO-277 PIN3 PIN2 PIN1 Case.
  • Ultra Low Forward Voltage ( VF ) Drop Low Power Losses.
  • Low Leakage Current at high temperature.
  • Reliable.

📥 Download Datasheet

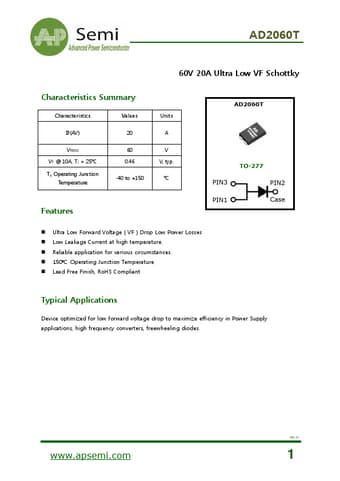

Datasheet preview – AD2060T

Datasheet Details

Part number AD2060T
Manufacturer AP Semiconductor
File Size 441.76 KB
Description 60V 20A Ultra Low VF Schottky
Datasheet download datasheet AD2060T Datasheet
