SBR2060CTF, SBR2060CT, Super Barrier Rectifier

SBR2060CT SBR2060CTF SBR2060CTI SBR2060CTB Using state-of-the-art SBR IC process technology, the following .

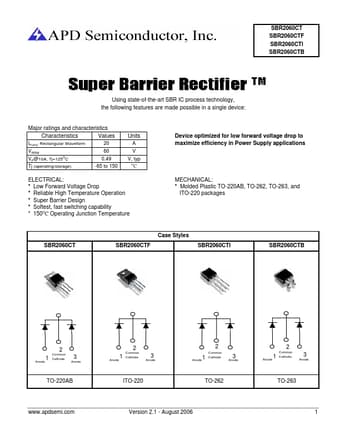

datasheet Preview Page 1 from Datasheet4u.com

SBR2060CT-APD.pdf

SBR2060CTF Datasheet Preview — This datasheet PDF includes multiple part numbers: SBR2060CTF, SBR2060CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBR2060CTF, SBR2060CT

Manufacturer:

APD

File Size:

67.77 KB

Description:

Super Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SBR2060CTF, SBR2060CT.
Please refer to the document for exact specifications by model.

Features

* are made possible in a single device: Major ratings and characteristics Characteristics Values IF(AV) Rectangular Waveform 20 VRRM VF@10A, Tj=125OC Tj (operating/storage) 60 0.49 -65 to 150 Units A V V, typ OC ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operat

Applications

* MECHANICAL:
* Molded Plastic TO-220AB, TO-262, TO-263, and ITO-220 packages SBR2060CT Case Styles SBR2060CTF SBR2060CTI SBR2060CTB 1 Anode 2 Common Cathode 3 Anode TO-220AB 2 Common 1 Cathode Anode 3 Anode ITO-220 2 Common 1 Cathode Anode 3 Anode TO-262 2 Common 1 Cathode Anode
