SBR3045PT, Super Barrier Rectifier

SBR3045PT Using state-of-the-art SBR IC process technology, the following .

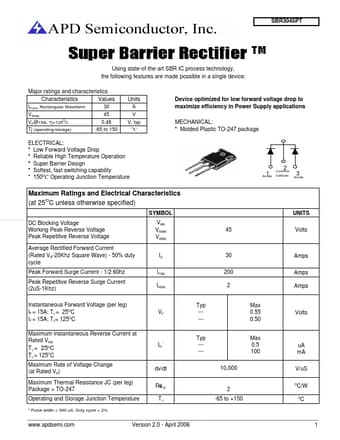

datasheet Preview Page 1 from Datasheet4u.com

SBR3045PT_APD.pdf

SBR3045PT Datasheet Preview — Preview of SBR3045PT PDF

Datasheet Details

Part number:

SBR3045PT

Manufacturer:

APD

File Size:

92.63 KB

Description:

Super Barrier Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@15A, Tj=125OC Tj (operating/storage) 30 45 0.48 -65 to 150 Units A V V, typ O C Device optimized for low forward voltage drop to maximize efficiency in Power Supply ap

Applications

* MECHANICAL:
* Molded Plastic TO-247 package ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 150OC Operating Junction Temperature Anode 1 Common Cathode 2 Anode 3 Maximum Ratings
