PA10

Power Operational Amplifier

PA10 Features

* Gain Bandwidth Product

* 4 MHz

* Temperature Range

* 55 to +125°C (PA10A)

* Excellent Linearity

* Class A/B Output

* Wide Supply Range

* ±10V to ±50V

* High Output Current

* ±5A Peak APPLICATIONS

* Mo

PA10 General Description

The PA10 and PA10A are high voltage, high output current operational amplifiers designed to drive resis‐ tive, inductive and capacitive loads. For optimum linearity, the output stage is biased for class A/B operation. The safe operating area (SOA) can be observed for all operating conditions by sele.

PA10 Datasheet (1.94 MB)

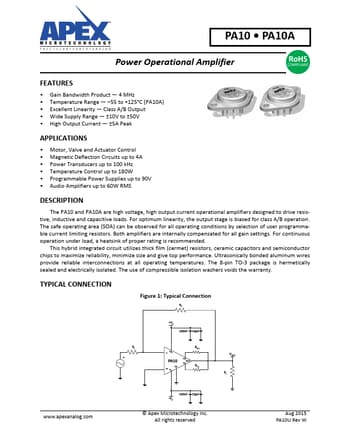

Preview of PA10 PDF

Datasheet Details

Part number:

PA10

Manufacturer:

APEX

File Size:

1.94 MB

Description:

Power operational amplifier.
