PA12A Power Operational Amplifier

The PA12 is a state of the art high voltage, very high output current operational amplifier designed to drive resistive, inductive and capacitive loads.For optimum linearity, especially at low levels, the output stage is biased for class A/B operation using a thermistor compensated base-emitter volt.

PA12A Features

* LOW THERMAL RESISTANCE

* 1.4°C/W

* CURRENT FOLDOVER PROTECTION

* NEW

* HIGH TEMPERATURE VERSION

* PA12H

* EXCELLENT LINEARITY

* Class A/B Output

* WIDE SUPPLY RANGE

* ±10V to ±50V

* HIGH OUTPUT CURRENT

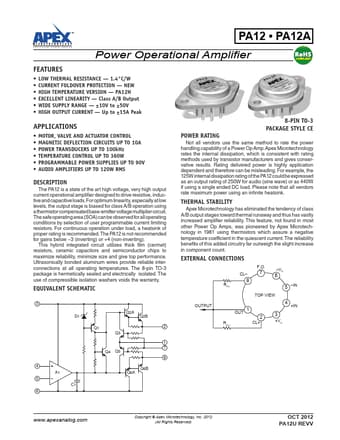

PA12-APEX.pdf
