PA1211.151NLT, PA1212.700NLT Datasheet - Pulse

PA1211.151NLT - SMT Power Inductor

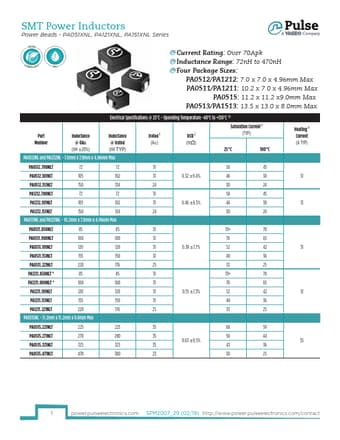

SMT Power Inductors Power Beads - PA051XNL, PA121XNL, PA151XNL Series Current Rating: Over 70Apk Inductance Range: 72nH to 470nH Four Package Sizes: PA0512/PA1212: 7.0 x 7.0 x 4.96mm Max PA0511/PA1211: 10.2 x 7.0 x 4.96mm Max PA0515: 11.2 x 11.2 x9.0mm Max PA0513/PA1513: 13.5 x 13.0 x 8.0mm Max Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C 7,8 Part Inductance Inductance Irated 1 DCR 2 Number @ 0ADC @ Irated (ADC) (mΩ) (nH ±20%) (nH TYP) PA0512NL and PA12

PA1212.700NLT-Pulse.pdf

This datasheet PDF includes multiple part numbers: PA1211.151NLT, PA1212.700NLT. Please refer to the document for exact specifications by model.
PA1211.151NLT Datasheet Preview Page 2 PA1211.151NLT Datasheet Preview Page 3

Datasheet Details

Part number:

PA1211.151NLT, PA1212.700NLT

Manufacturer:

Pulse

File Size:

1.29 MB

Description:

Smt power inductor.

Note:

This datasheet PDF includes multiple part numbers: PA1211.151NLT, PA1212.700NLT.
Please refer to the document for exact specifications by model.
