PA1211.221NLT Datasheet - Pulse

PA1211.221NLT SMT Power Inductor

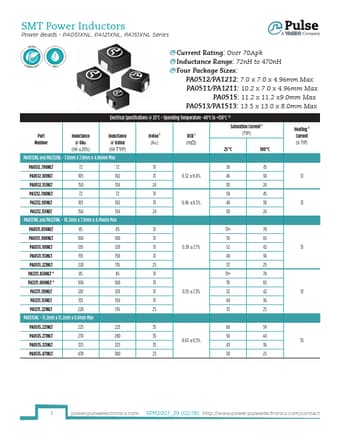

SMT Power Inductors Power Beads - PA051XNL, PA121XNL, PA151XNL Series Current Rating: Over 70Apk Inductance Range: 72nH to 470nH Four Package Sizes: PA0512/PA1212: 7.0 x 7.0 x 4.96mm Max PA0511/PA1211: 10.2 x 7.0 x 4.96mm Max PA0515: 11.2 x 11.2 x9.0mm Max PA0513/PA1513: 13.5 x 13.0 x 8.0mm Max Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C 7,8 Part Inductance Inductance Irated 1 DCR 2 Number @ 0ADC @ Irated (ADC) (mΩ) (nH ±20%) (nH TYP) PA0512NL and PA12.

PA1211.221NLT Datasheet (1.29 MB)
