PA1219, 1800-2000 MHz. Low Noise High Dynamic Range Linear Amplifier

PA1219 1800-2000 MHz.PRELIMINARY Low Noise High Dynamic Range Linear Amplifier .

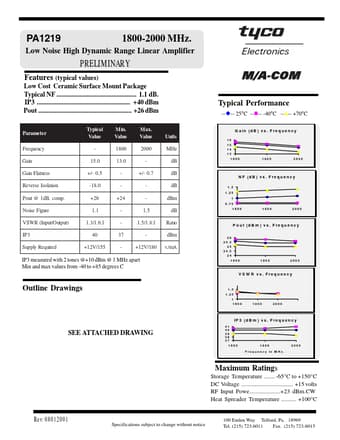

datasheet Preview Page 1 from Datasheet4u.com

PA1219_TycoElectronics.pdf

PA1219 Datasheet Preview — Preview of PA1219 PDF

Datasheet Details

Part number:

PA1219

Manufacturer:

Tyco Electronics

File Size:

46.23 KB

Description:

1800-2000 MHz. Low Noise High Dynamic Range Linear Amplifier

Features

* (typical values) Low Cost Ceramic Surface Mount Package Typical NF 1.1 dB. IP3 +40 dBm Pout +26 dBm Parame te r Frequency Gain Gain Flatness Reverse Isolation Pout @ 1dB. comp. Noise Figure VSWR (Input/Output) IP3 Supply Required Typical Value 15 . 0 +/- 0.5 - 18 . 0 +26 1. 1 1.3/1.6:1 40 +12V/15
